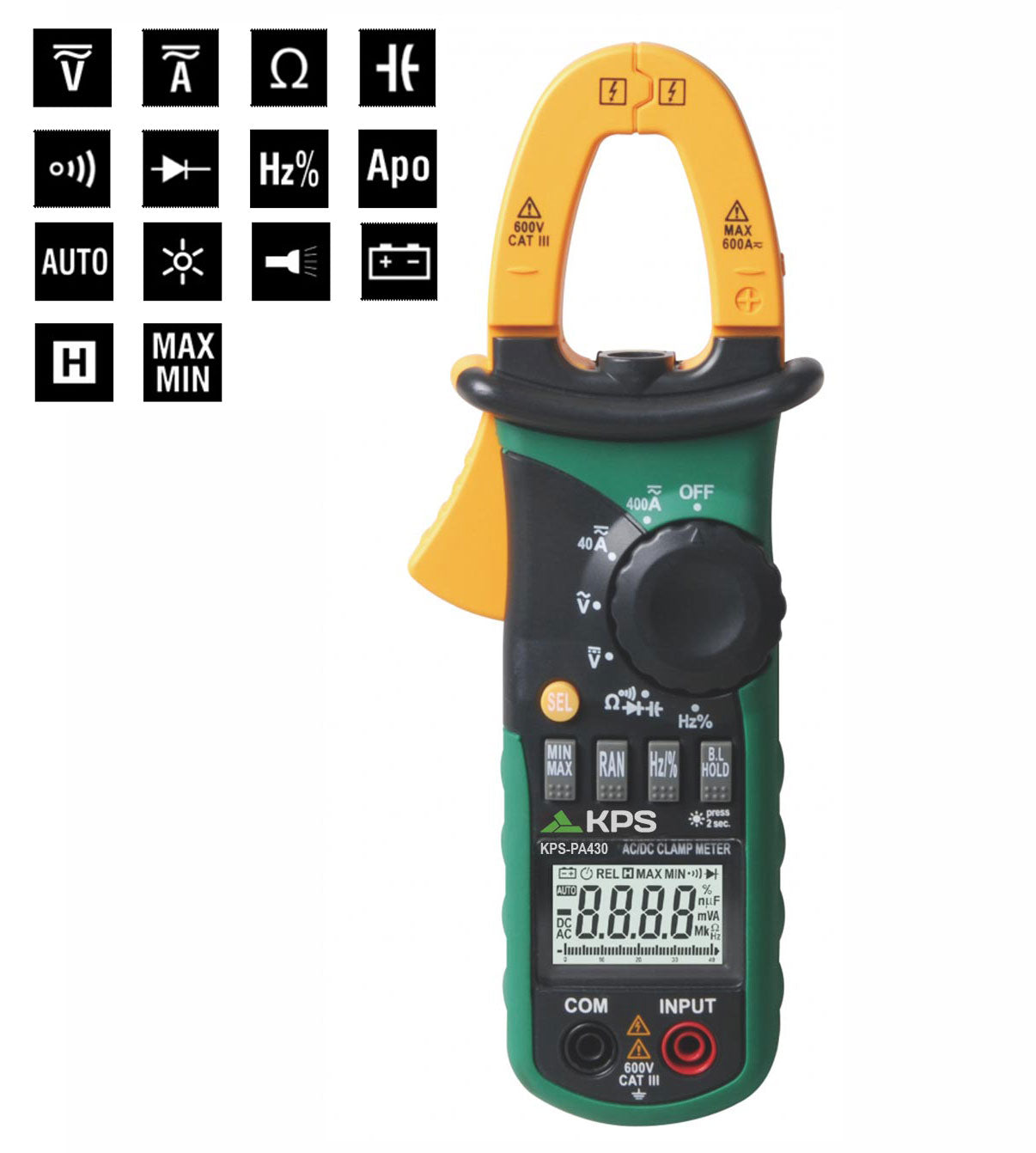

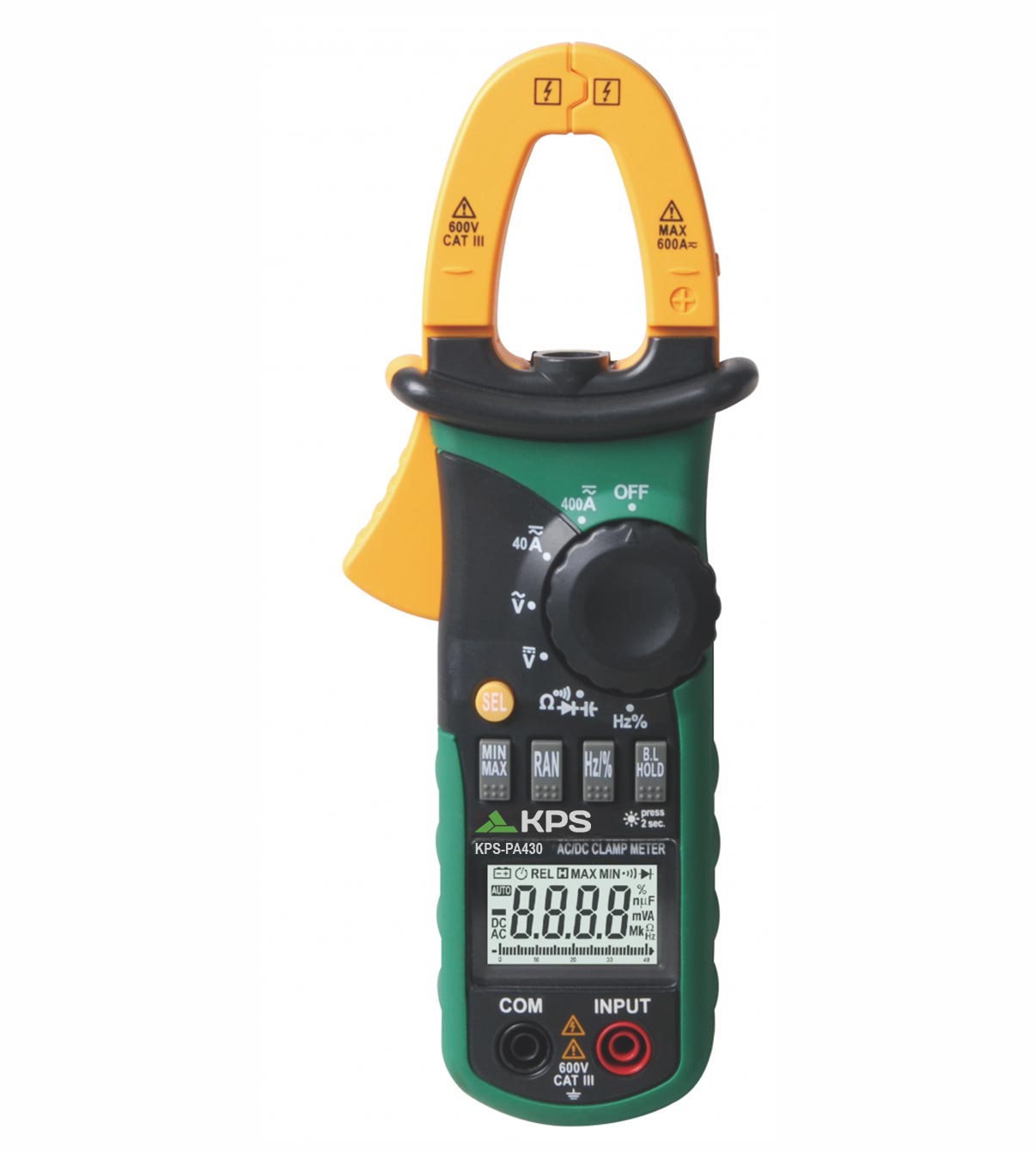

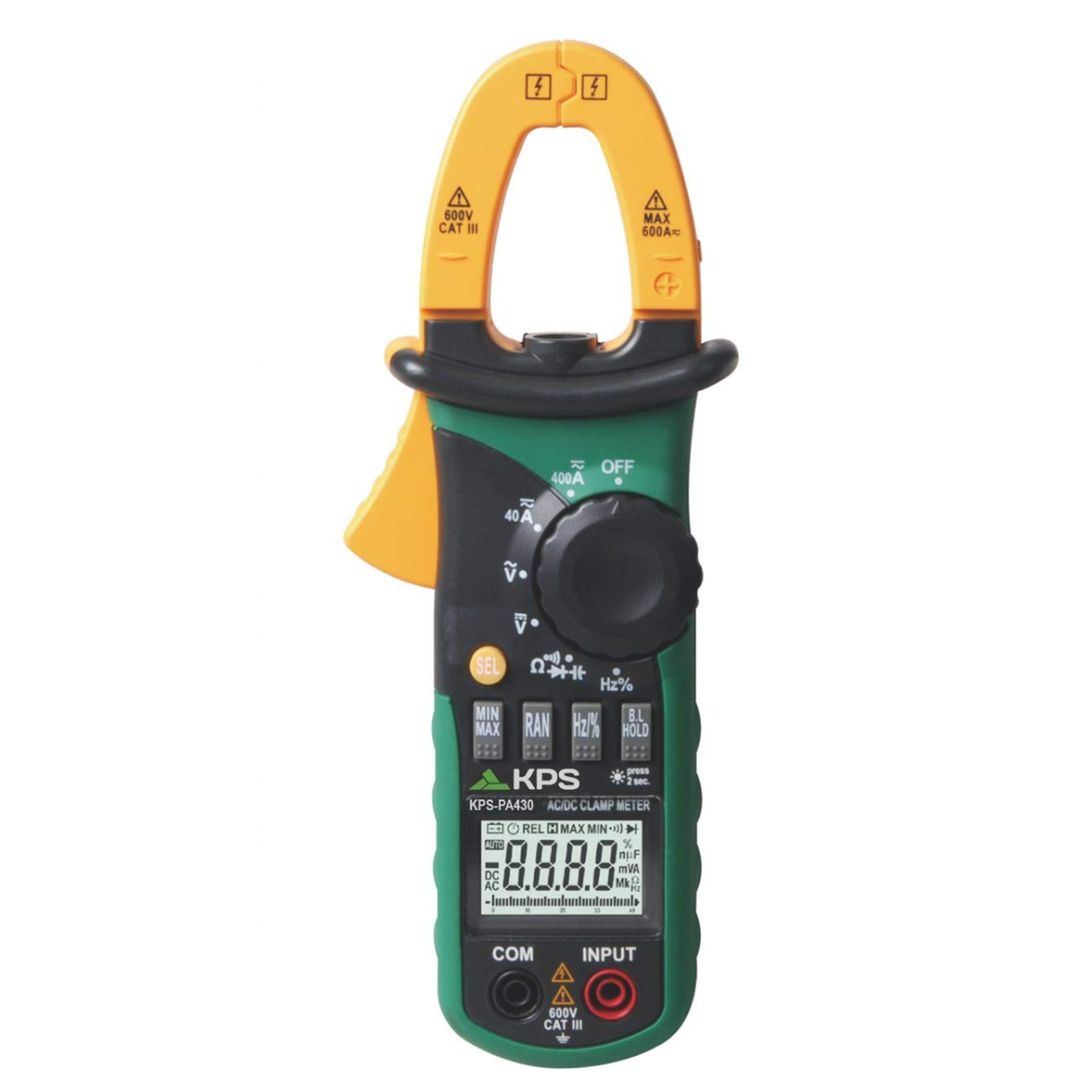

KPS PA430 MINI Digital Clamp Meter for AC/DC Voltage and Current

The KPS PA430 Mini Digital Clamp Meter is a compact, professional measuring tool designed for electricians, maintenance technicians, and DIY users who need reliable electrical measurements in a portable format. Its 4000-count display delivers clear readings, while the 26 mm (1 in) jaw opening makes it easy to measure a wide variety of conductors.

This clamp meter measures AC/DC voltage up to 600V, AC/DC current up to 400A, resistance up to 40MΩ, capacitance up to 4000µF, frequency up to 1kHz, and duty cycle. Additional features include continuity testing with an audible buzzer, diode testing, relative measurement, MAX/MIN recording, and Data Hold for convenient viewing and recording of results.

Designed for everyday electrical maintenance and troubleshooting, the PA430 offers both auto and manual ranging, automatic power-off to help extend battery life, a built-in work light, LCD backlight, and a low battery indicator for added convenience.

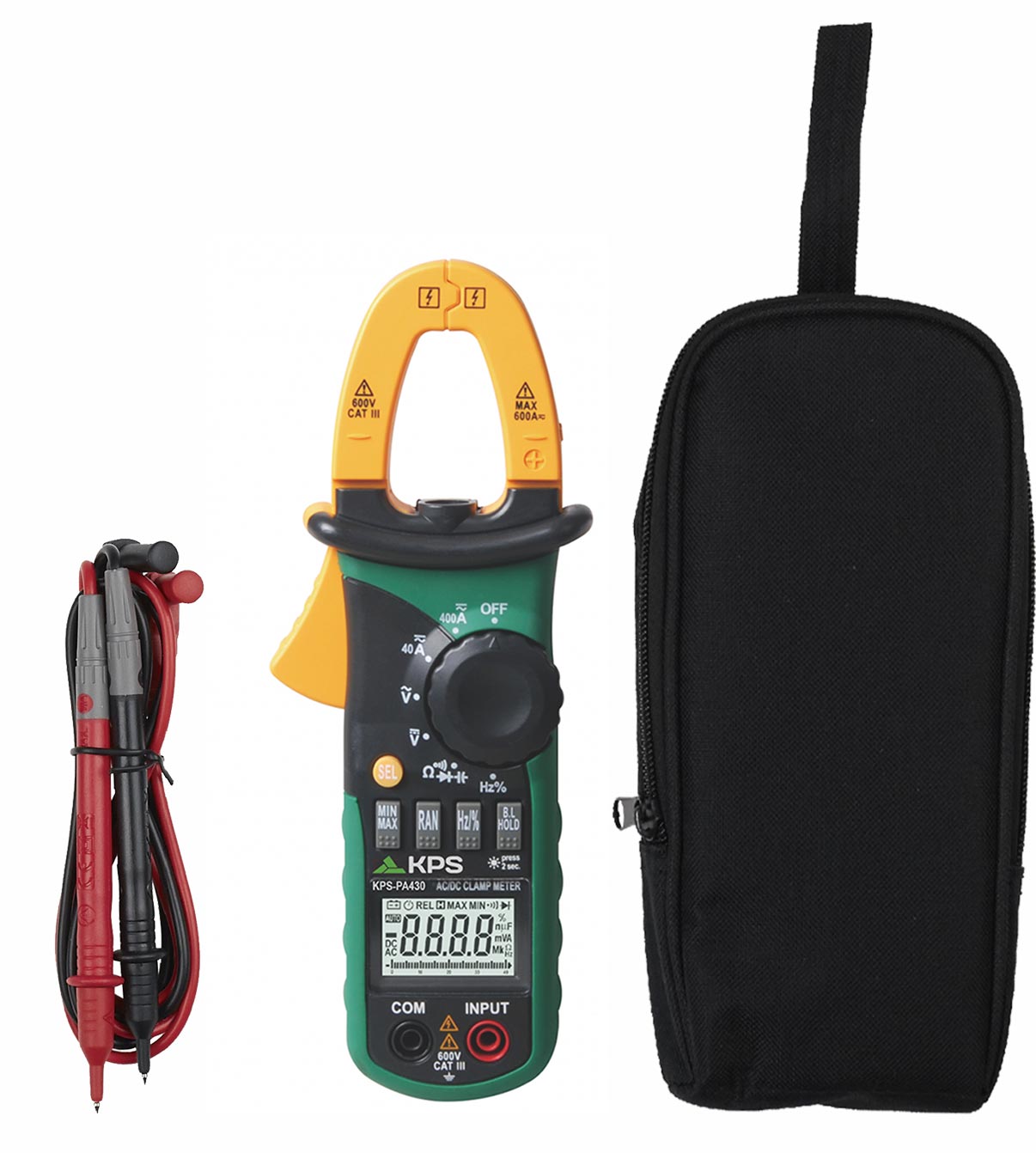

The package includes the KPS PA430 Mini Clamp Meter, test leads, carrying case, three 1.5V AAA batteries, and a user manual in English and Spanish.

• Measures AC/DC Voltage up to 600V and AC/DC Current up to 400A

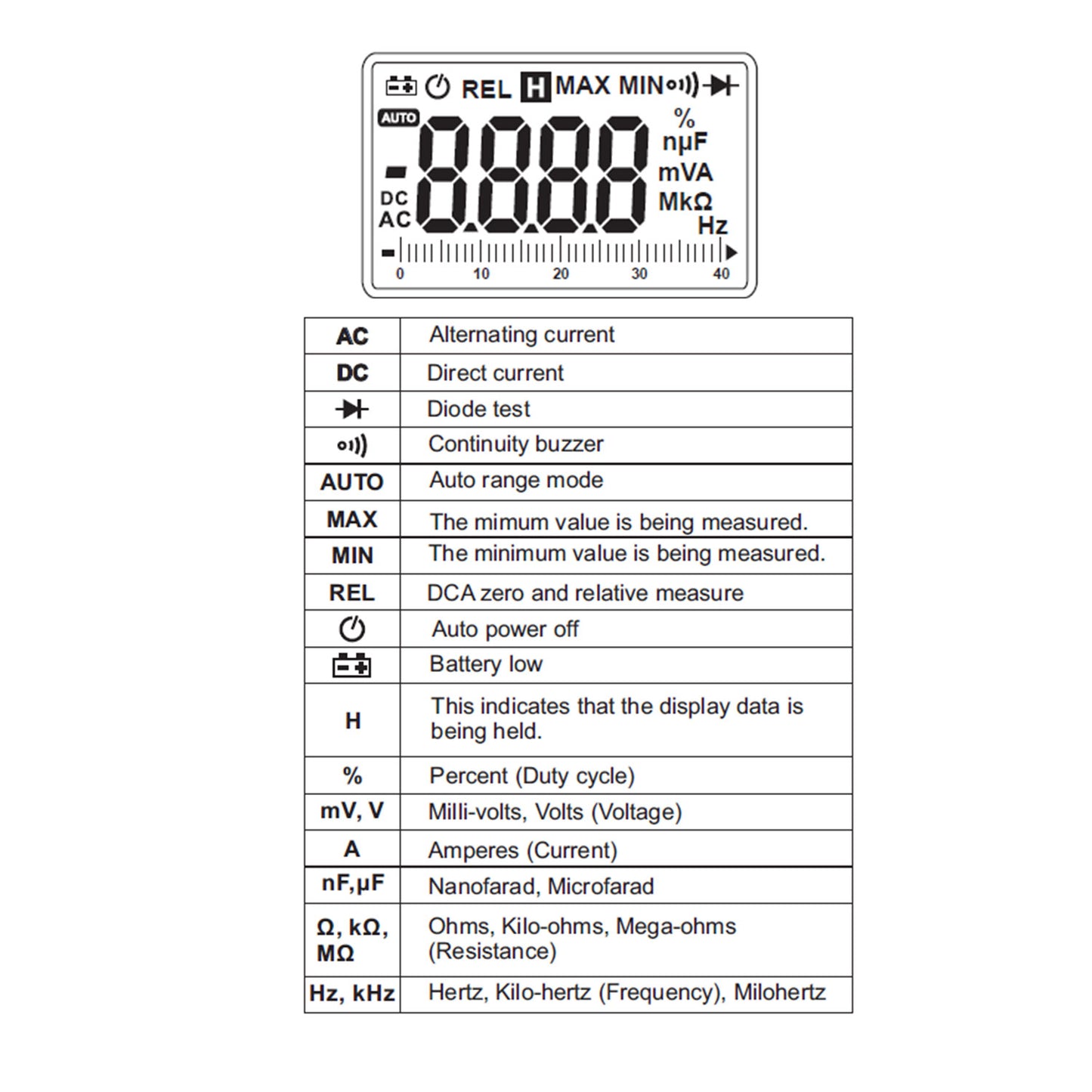

• Displays Max/Min value on 4000 count LED screen with data hold function
• Features continuity buzzer and diode test
• Measures resistance up to 40MΩ, capacitance up to 4000μF, and frequency up to 10MHZ
• Has work light to illuminate worksite in dark conditions
• CAT III 600V according to EN 61010
