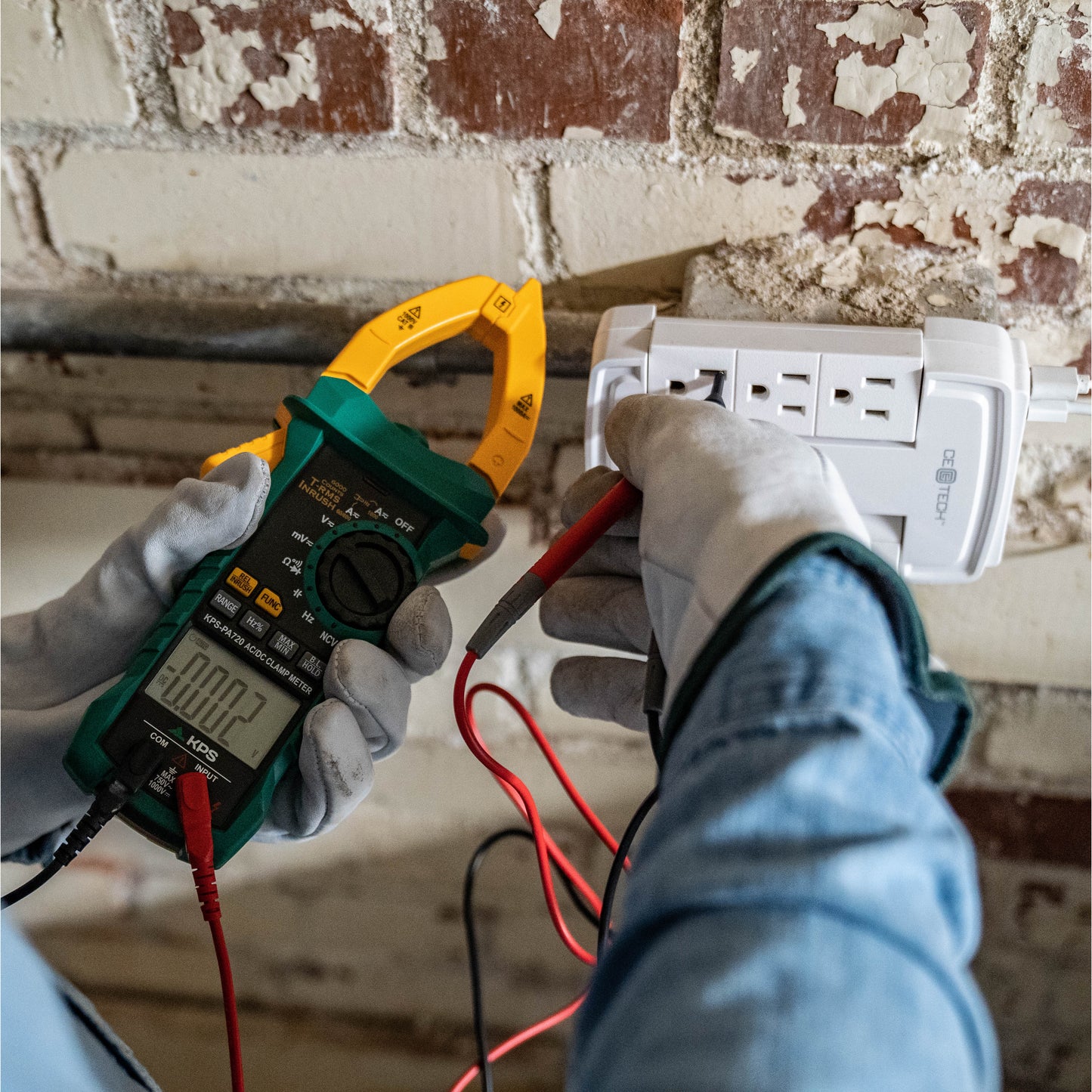

KPS PA720 True RMS Industrial Digital Clamp Meter

The KPS PA720 is a digital True RMS clamp meter designed for electricians, HVAC technicians, maintenance professionals and advanced users who need to inspect electrical systems with one versatile instrument.

Measure AC/DC current up to 1000A, DC voltage up to 1000V and AC voltage up to 750V. The meter also supports resistance up to 60MΩ, capacitance up to 100mF, frequency up to 10MHz, duty cycle, diode testing and audible continuity checks.

Its 1.6-inch jaw opening accommodates larger conductors without disconnecting the circuit. Inrush current measurement helps evaluate startup loads from motors and electrical equipment, while non-contact voltage detection provides a convenient way to identify the presence of AC voltage before further testing.

Choose automatic or manual ranging and use relative, MAX/MIN or data-hold modes to review and record readings. A backlit 6000-count display and built-in work light improve visibility in dim electrical panels and work areas.

The PA720 includes automatic power-off and a low-battery indicator. It is rated CAT III 1000V and CAT IV 600V according to EN 61010. The package includes test leads, a carrying case, a bilingual English and Spanish manual, and one 9V battery.

• Measures DC voltage up to 100V and AC voltage up to 750V as well as AC/DC Current up to 1000 Amps
• Features True RMS and 6000 counts for accurate electrical readings
• Acts as a non-contact voltage detector when needed
• Measures inrush current, resistance and frequency measurement
• Displays Max/Min values as well as relative measurement with data hold function
• Diode check and continuity buzzer to quickly check for breaks in circuit and correct polarity
• Work light to illuminate dark work conditions
• CAT III 1000V, CATIV 600V according to EN61010
